Trafalgar Condominium Apartments

Montreal, Quebec

Restoration

Architect

DFS Inc. architecture & design
Montreal, Quebec

General Contractor

Maçonnerie Rainville et frères inc.
Chambly, Quebec

Sheet Metal Contractor

Couvreur Verdun inc.
Montreal, Quebec

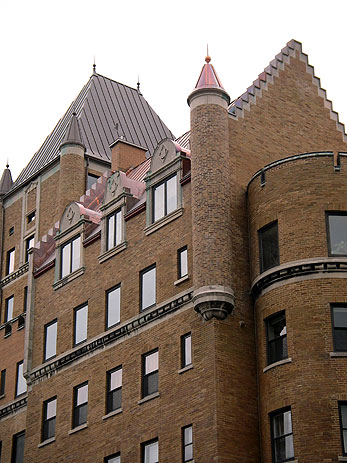

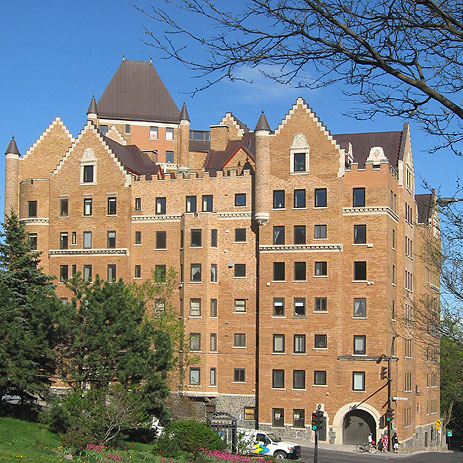

With incredible views of downtown Montreal, the historic Trafalgar Condominium Apartments resembles a medieval castle with its main tower and steep-pitched copper roof, which is dotted with numerous gables, chimneys and dormers. The building's architectural features make it stand out among the newer, more modern buildings of the 21st century that surround the city and near Mount Royal Park.

However, after nearly 80 years, the building's façade and copper roof was in dire need of repairs. In 2008, a major masonry and roof restoration project was initiated and carried out in three phases. The restoration project was completed at the end of 2010.

The Trafalgar apartments were built in 1931 and designed by well-known architects Hutchison & Wood. They were converted to condominiums in 1975, without changing the building's architecture. The complex is an assembly of three major blocks, with some of the larger and more luxurious units located on the upper floors.

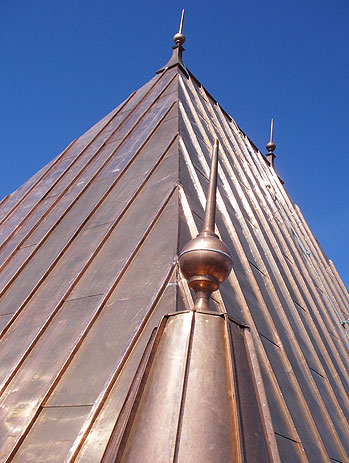

The original copper roofing had neared the end of its useful life in its urban environment. To conform to current energy codes and standards, the roofing system needed to be insulated. A 38,000-square-foot copper, batten-seam roof system was designed and installed, with careful attention being paid to numerous special details including the gables and turrets intersections, and crenulated wall copings.

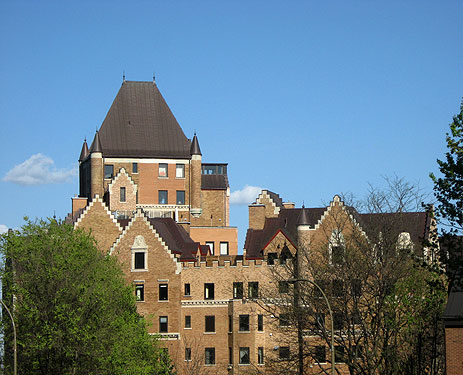

The overall roof form is comprised of several features: the main tower with its steep-pitched roof, and four intricate volumes with complex angular junctions, as well as numerous gables, chimneys and dormers. The architects and contractor worked closely together to suit the northern site conditions.

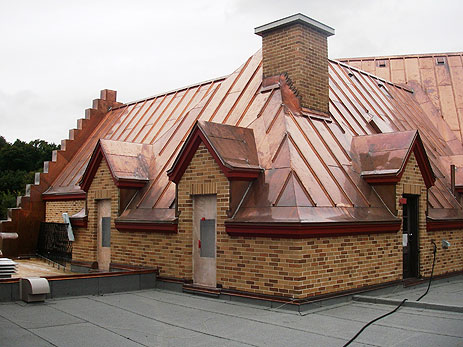

Following the removal of the existing copper roofing, gutters and downspouts, a new copper roof was installed. The new roofing system consists of a modified bituminous vapour barrier, foil faced polyisocyanurate insulation, plywood sheathing, Roofshield underlayment system and 16-ounce copper batten-seam panels, all containing various custom details as required by numerous and varied site conditions. Mock-ups of copper gutters, architectural decorative elements and roof turrets were prepared and tested on site prior to final installation.

Architectural Category: Batten Seam Roofs and Walls

Photo Credit: Daniel Durand

Photo Credit: Daniel Durand

Photo Credit: Daniel Durand

Photo Credit: Daniel Durand

Photo Credit: Daniel Durand

Photo Credit: Daniel Durand
